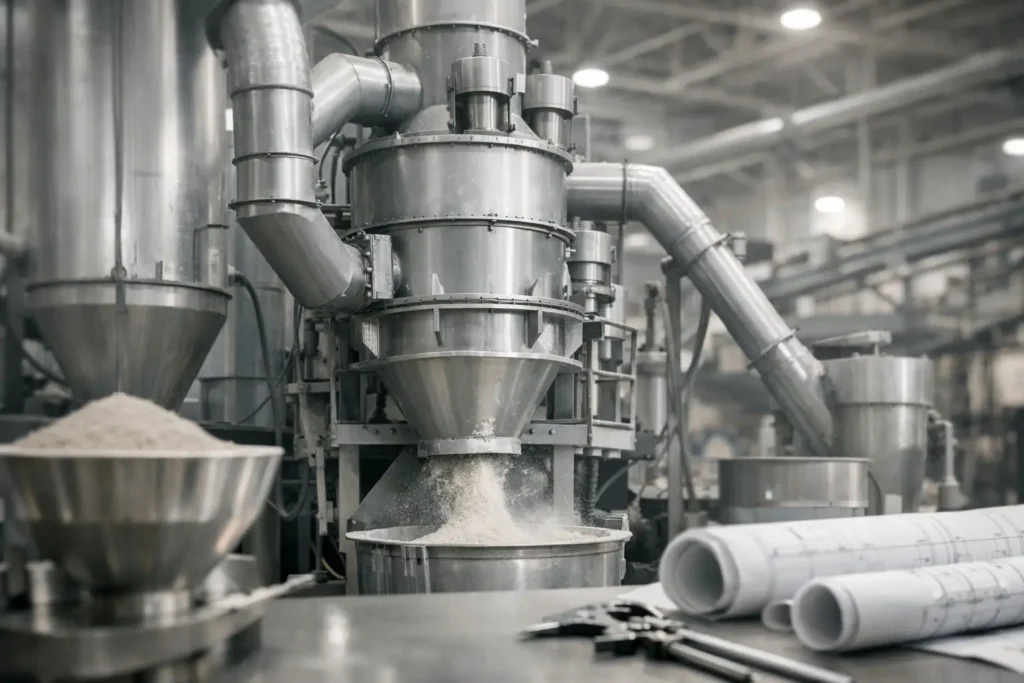

How to Size Air Classifiers for Production

A classifier that is too small becomes a production constraint long before the mill reaches its rated capacity. A classifier that is too large can carry unnecessary capital cost, consume excessive air and make fine-cut control more difficult. Knowing how to size air classifiers means matching separation duty to the material, the required particle size distribution and the realities of an industrial production line – not selecting equipment from a nominal tonnes-per-hour figure.

For manufacturers handling pharmaceuticals, food ingredients, pigments, minerals, battery materials or performance chemicals, classifier sizing directly affects product consistency, yield, energy use and downstream handling. The correct design starts with process data and ends with validated performance on the actual material.

How to size air classifiers from the separation duty

An air classifier separates particles according to the balance between centrifugal force and aerodynamic drag. Fine particles follow the air stream towards the fines outlet, while coarser particles are rejected and returned, discharged or routed for further milling. Capacity alone does not define this separation. The required cut point, often expressed as d50, is equally significant.

The first question is therefore not, “What throughput do we need?” It is, “What product specification must the system reliably deliver?” Define the target d50 alongside the acceptable oversize fraction, the desired top size and any limits on ultrafines. A powder specified at d50 20 microns with a narrow upper tail requires a very different classifier duty from a product at d50 80 microns where a broader distribution is acceptable.

A practical sizing basis should include:

• required production rate in kilograms or tonnes per hour, including realistic peak demand;
• feed particle size distribution and its expected variation;
• product cut point, permitted oversize and allowable fines fraction;
• material density, particle shape, moisture level and tendency to agglomerate;
• operating temperature, gas type and site constraints;
• whether the classifier is operating as a standalone unit, in a closed-circuit mill or within a complete process line.

These variables interact. Increasing feed rate without changing classifier geometry or air volume generally shifts the cut point coarser and can increase bypass of oversized particles. Tightening the cut point at a fixed throughput usually requires more classification energy, more air or a larger separating zone.

Start with representative material data

Bulk density is useful for hopper and feeder design, but particle density is more relevant to aerodynamic separation. Dense mineral particles, for example, require a different force balance from low-density organic powders at the same nominal size. Particle shape also matters: plate-like, fibrous or irregular particles do not behave like spheres and may classify less sharply.

Moisture and cohesion must be assessed early. A classifier cannot consistently separate particles that enter as stable agglomerates. Hygroscopic powders, fatty food ingredients and materials with a broad moisture range may need conditioned process air, deagglomeration or a different milling and classification arrangement. If this is ignored during equipment selection, quoted capacity can look credible on paper but fail to translate into stable production.

Laboratory or pilot trials provide the most reliable starting point. They establish the material’s actual classification curve, achievable cut point and response to changes in rotor speed, air volume and feed rate. For projects moving from development to commercial production, this evidence is more valuable than scale-up based on a single screen analysis.

Set throughput against cut point, not nameplate capacity

Air classifier capacity is not a fixed number. A machine may process a high mass flow at a relatively coarse separation but only a fraction of that rate when producing a fine, tightly controlled grade. Suppliers should therefore state capacity against a defined material, feed distribution, cut point and product specification.

When sizing the system, use the required net product rate, then account for classification yield and recirculating load. In a milling circuit, much of the material presented to the classifier may be oversize returning to the mill. The classifier’s circulating solids load can therefore be several times the final production rate. A system designed only around saleable output may be undersized despite appearing adequate at the outset.

For example, a line producing 1,000 kg/h of fine product at 70 per cent classification yield must manage considerably more than 1,000 kg/h of feed solids. The precise load depends on mill discharge distribution, rejection behaviour and the process layout. This is why mill and classifier sizing should be carried out together for closed-loop systems.

A sensible design margin is necessary, but excessive oversizing is not automatically safer. At very low loading, the classifier may operate outside its most stable range. Select a system with sufficient headroom for feed variation, planned capacity growth and maintenance contingencies, while retaining controllable performance at normal operating rates.

Size the air system and rotor for control

The classifier rotor creates the centrifugal field that rejects coarse particles. Higher rotor speed generally produces a finer cut point, but it also raises power demand, component wear and sensitivity to feed changes. Rotor diameter, wheel design and rotational speed must be selected as a system rather than treated as separate choices.

Process air provides the drag force that carries fines through the classifier. Airflow must be sufficient to convey the intended fine fraction without entraining unacceptable coarse material. Too little air can reduce capacity, promote deposits and make the product coarser. Too much air can increase fan energy, burden filters and transport more marginal particles into the fines stream.

Pressure drop across the classifier, ducting, cyclone or filter, and any ancillary equipment determines the fan duty. This is a frequent source of underestimation. A fan selected only for nominal airflow may not maintain the required volume once filter resistance rises in service. The result is drift in cut point and throughput. Fan static pressure, filtration performance and control strategy should be specified for clean and operating conditions.

For fine powders, air quality is part of the process specification. Temperature, humidity and, where required, inert gas conditions influence powder flow, explosion protection and product stability. Inert classification may be appropriate for combustible dusts or oxidation-sensitive materials, but it introduces gas recovery, leak management and oxygen-control requirements that affect overall system sizing.

Consider the complete material path

A correctly sized classifier can still deliver poor results if the feed system is inconsistent. Starve feeding may create unstable product size, while overfeeding can overload the separating zone and increase coarse carry-over. Loss-in-weight feeders, screw feeders and rotary valves should be selected for the powder’s flow behaviour and the required turndown range.

The fines collection system also needs sufficient capacity. Cyclones, bag filters and product discharge valves must preserve the air balance and avoid re-entrainment. For difficult powders, bridge-free discharge, suitable filter media and effective cleaning are as relevant to production uptime as the classifier wheel itself.

Wear should be evaluated where abrasive feedstocks are involved. Alumina, silica, ceramics and hard mineral products can rapidly affect clearances and classification performance. Wear-resistant liners, coated rotors and accessible inspection points may add initial cost but reduce variation and downtime over the equipment life.

Validate scale-up and operating window

The strongest sizing approach defines an operating window rather than a single duty point. Test the expected range of feed sizes, moisture levels and throughput. Record how the d50, oversize fraction, yield, power draw and pressure drop respond. This establishes the combination of rotor speed, airflow and feed rate that delivers specification with repeatable control.

Scale-up should preserve relevant process conditions, not simply multiply dimensions. Air velocity, solids loading, rotor tip speed, residence time and feed dispersion all influence performance. For high-value or regulated products, pilot-scale trials and a documented factory acceptance protocol reduce risk before committing to full-scale equipment.

Instrumentation turns that design work into repeatable operation. Differential pressure measurement, airflow monitoring, rotor speed control, feed-rate control and product sampling allow operators to identify drift before it becomes off-specification production. Where continuous particle size measurement is justified, it can further tighten control, though its value depends on the material and required response time.

DP Pulverizer UK engineers air classification systems around the full process duty, from development trials through to integrated milling, conveying and collection equipment. This approach avoids the common mistake of treating the classifier as an isolated machine.

The right classifier is not necessarily the largest unit or the one with the highest published capacity. It is the system that maintains the required particle size distribution at the intended production rate, with controllable energy use and enough operating margin for real plant conditions. Establish that operating window before final selection, and the classifier becomes a reliable production asset rather than a recurring source of variation.
